Home > Products > Sidewall conveyor belt




This belts can be used at a steeper angle up to 75°than was previously possible for the volume movement of powdery and lumpy materials. Useful when require skirt boards along the whole length of the belt or when from skirt boards shortens belt life.


 • Space saving
 • Deflection easily in many ways
 • Increased material volume
 • Cost efficient

 • Chemical Companies
 • Cement Companies
 • Steel Companies etc.

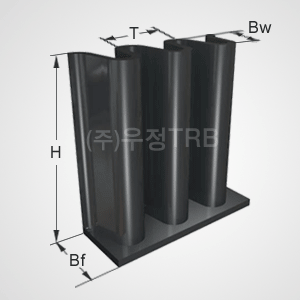

     Sidewall

  (Unit : mm)

TYPE H Bf Bw T
S 40 30 35 25
80 50 40 45(40)
100 50 40 45(40)
120 50 40 45
120 80 70 60
160 75 65 63
180 75 65 63
200 75 65 63
240 75 65 63
280 75 65 63
300 90 80 75
ES 400 100 90 83
500 100 90 83



     Cleat

  (Unit : mm)

C TYPE H W
70 80
110 110
120 140
140 140
150 150
180 180

T TYPE H W
90 100
110 110
120 120
140 140
180 180



TC TYPE H W
110 100
140 140
180 160
220 180
230 230


TCS TYPE H W
220 180
280 230
360 230
460 250




       Note : Other specifications are available by customized designing.
