Home > Products >Steel cord Conveyor Belt




For maximum conveying performance over long distances and large conveying heights.
Various belt designs and cover stock grades.

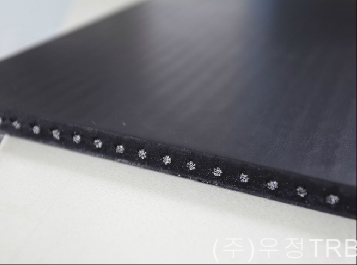

 • Steel cord conveyor belts ensure maximum conveying performance, even under grueling stress conditions.
 • Their robust design guarantees high tensile strength at maximum conveying capacity as well as excellent impact resistance.
 • Wear-resistant, rot and corrosion-resistant, resistant to chemicals and thermally stable, our conveyor belts provide long years of service while requiring little maintenance.
 • High performance carbon steel reinforcement gives super tensile strength to conveyor belt.
 • Save your take-up part distance using efficienct elongation in comparision of textile re-inforced conveyor belt.
 • Extra enhancement with curve efficiency

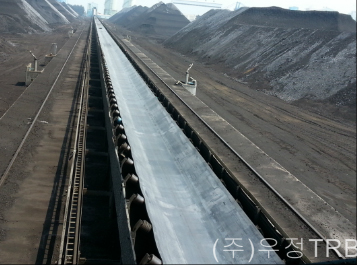

 • Suitable for long distance conveying as well as heavy & large conveying materials.


 • Steel plant
 • Cement plant

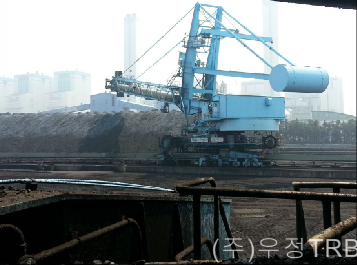

 • Thermoelectric power plant
 • Re-cycling company



















Type Cord dia.(mm) Cord pitch(mm) Head pulley dia.(mm)
ST 500 2.9 12.5 500
ST 630 2.9 10 500
ST 800 3.6 12 630
ST 1000 4.9 12 630
ST 1250 4.8 14 630
ST 1600 5.5 15 800
ST 2000 5.5 12 800
ST 2500 7.1 15 1000
ST 3150 7.9 15 1250
ST 3500 8.4 15 1250
ST 4000 8.9 15 1250
ST 4500 9.6 16 1400
ST 5000 10.7 17 1600
ST 5400 11.2 17 1600
