Home > Products > Bucket Elevator Conveyor Blet




This belts are used for the vertical carriage of light powdery materials or minute particles such as fine coal, chemicals, fertilizer and feedstuff. It features its lightness and easiness to handle when plastic materials are used for light duty.


 • Space saving
 • Increased material volume
 • Cost efficient


 • Chemical Companies
 • Cement Companies
 • Steel Companies etc.


















   Bucket Elevator Conveyor Belt Size

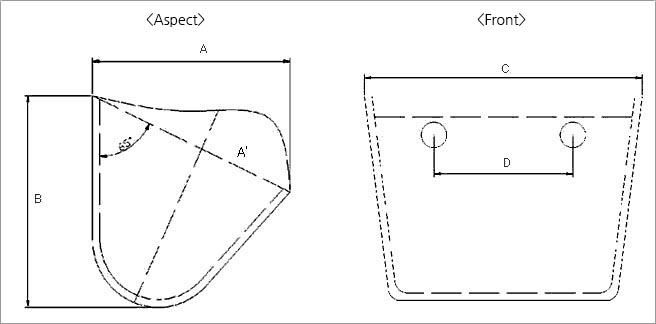

<High density poly-ethylene bucket DIMENSION>



Size Dimension Bolt Hole Weight
(㎏)
Capacity
(㎤)
A/diagonal B C D Unit
4×2 78/95 80 110 55 2 0.072 270
5×4 103/115 100 142 85 2 0.142 500
6×4 115/130 113 150 90 2 0.213 620
7×5 135/147 125 185 105(67) 2(3) 0.294 1040
8×5 130/142 128 215 70 3 0.448 1080
9×6 155/168 152 235 80 3 0.582 1940
10×6 158/177 158 252 90 3 0.636 2170
12×6 165/177 160 310 75 4 0.740 2400
12×7 187/207 180 305 75 4 0.867 3370
13×6 165/177 160 340 90 4 1.010 3200
13×7 187/207 180 345 90 4 1.131 3600
14×7 185/195 170 360 90 4 1.150 3450
14×8 200/223 188 360 90 4 1.443 4600
16×8 205.223 195 415 95 4 1.757 5300


     Temperature in use : -30℃ ~ 90℃
     Steel materials can be customized.
