Home > Products > Chevron Conveyor Belt




Carrying coal and mineral ore, also powdery materials such as sand, fine coal, and grain, as well as materials in bags, along routes.


 • Can carry loose materials at angles of 17°~18°, and bagged materials at 30°~35°.
 • Cleat angle and pitch are designed for smooth travel over return idlers.


 • Chemical Companies Cement Companies
 • Steel Companies
 • Wood products etc.

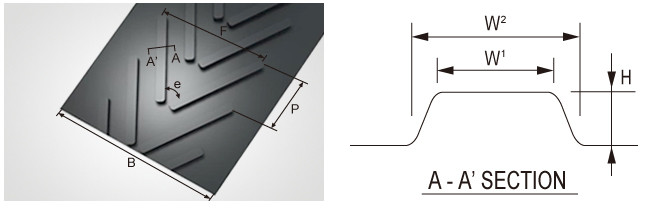

Width of belt
B(mm)
Height of flexwall
H(mm)
Width of flexwall
W(mm)
Pitch of flexwall
P(mm)
Angle of flexwall
e(°)
Type

350~650

3

12

80

120

A

650~1200

4

12

60

120

B

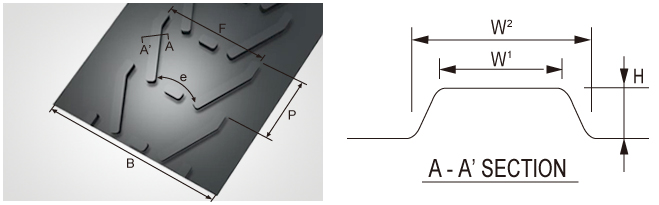

Width of belt
B(mm)
Width of flexwall
H(mm)
Height of flexwall
F(mm)
Height of flexwall
W1~\2(mm)
Pitch of flexwall
P(mm)
Angle of flexwall
e(°)

350~900

15

385

12~20

256

65.5

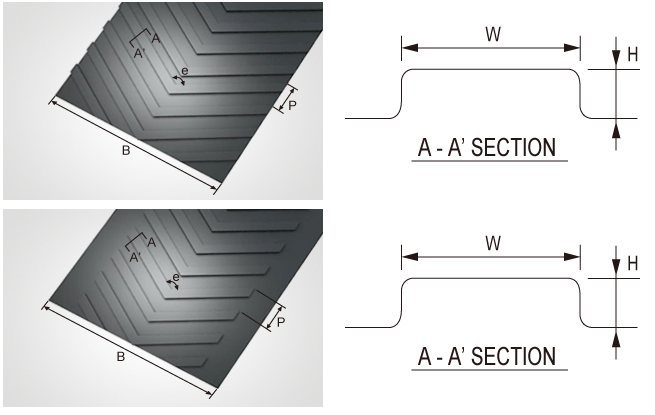

Width of belt
B(mm)
Height of flexwall이
H(mm)
Width of flexwall
F(mm)
Width of flexwall
W1~\2(mm)
Pitch of flexwall
P(mm)
Angle of flexwall
e(°)

350~900

25

450

12~25

325

55
