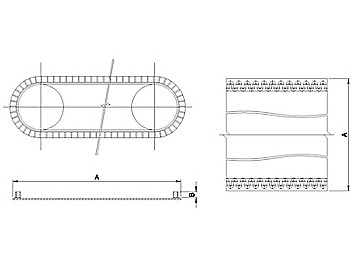

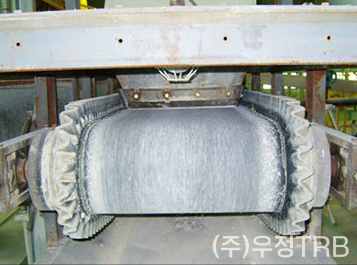

Attachment of flexwall to the both ends of the conveyor belts enables a clean environment by preventing items in transport from overflowing off the both ends of the belts.
• Flexwall attached
• Clean work environment can be maintained
• Low cost compared to the advantages
• Steel mills
• Power plants
• Law material trasport line in companies except cement manufacturers

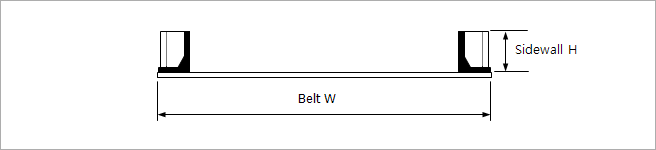

(Unit : mm)
Width of Belt
Belt size
Heigh of flexwall
(H)
Minimum pulley diameter
400
NN315/3 4×2 ( 8.5T )
40
250
500
NN315/3 4×2 ( 8.5T )
40
250
600
NN315/3 4×2 ( 8.5T )
60
250
700
NN315/3 4×2 ( 8.5T )
60
250
800
NN315/3 4×2 ( 8.5T )
60~120
250~400
900
NN315/3 4×2 ( 8.5T )
60~120
250~400
1000
NN315/3 4×2 ( 8.5T )
60~120
250~400
1050
NN315/3 4×2 ( 8.5T )
60~120
250~400
1200
NN315/3 4×2 ( 8.5T )
60~120
250~400
1400
NN400/4 4×2 ( 9.4T )
120~200
400~600
1600
NN400/4 4×2 ( 9.4T )
120~200
400~600
1800
NN500/5 4×2 ( 10.3T )
120~200
400~600
2000
NN500/5 4×2 ( 10.3T )
120~200
400~600
2200
NN500/5 4×2 ( 10.3T )
120~200
400~600
The above specifications are the standard ones. Upon designing, tension, elongation quality
