Home > Products > Filter Blet




Filter belts are used in specialized dewatering process equipment for separating solids from liquids in a slurry.


These belts are highly engineered and built to very exact tolerances and specifications
 • High filtration rates
 • High quality cover compound (chemical resistant, heat resistant,
   wear resistant)


 • Chemical Companies
 • Coal Burning Power Plants
 • Paper Pulp Processing
 • Certain Types of Mining etc.



















  (Unit : mm)

Width of Belt Measure of GROVING Height of Curving
Width Depth Pitch Legth
800 13 11 20 600 100
1200 13 11 20 1000 100
1600 13 11 20 1400 130
2400 13 11 25 2200 130
3200 19 18 26 3000 130
4200 19 18 26 4000 130



     Grooving Type


  <Type A>

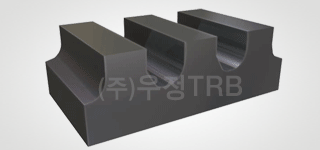

   Curving Type


<Type A>   <Type B>   <Type C>

  (Unit : mm)

Height

TYPE

A B C
65 O -
100 - O
125     O
130 - O
